Li-ion Battry Charger Board with Solar Panel for BeagleBone Black (ビーグルボーンブラック用リチウムバッテリー充電基板) : OELBBBPWR01

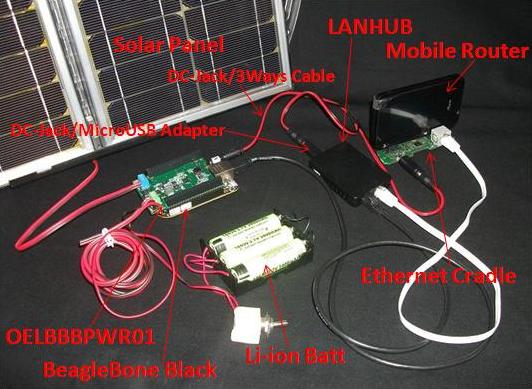

The OELBBBPWR01 is Li-ion battery charger board via 20V solar panel docked on BBB(BeagleBone Black). The OELBBBPWR01 provides +5V/3A output power source into BBB in expansion 46pins connector. The MPP(MaximumPowerPoint) is set to 17.2V for solar panel. A optinal 10kohm NTC thermister is available as battery heating detection and protection. Default setting for themal protection is available with 10kohm resistor mounted on board as dummy thermister and on/off SW4. If users hope to apply external thermal protection thermister mounted on battery, users have to let SW4 off and connect external 10kohm NTC thermister (103AT) mounted on battery to PAD(TH-IN/GND(-)) with soldering. The battery temperature range is −10degC to +50degC. The battery charging current is limited to 2.76A.LED1&2 indicate charging status(LED2=on/busy, LED1 =on/completed). The OELBBBPWR01 has Solar/Battery OR output port pads Vout on board. Solar panel may supply power into +5V DCDC converter for BBB and also into OR output port Vout and concurrently can charge power into battery at (>17.2V) region. User also can apply (15VDC to 20VDC) voltage output source instead of solar panel with connecting to solar panel port.

特徴 ;
  • Li‐ion 12V Battery Charger with 20V Solar Panel for BBB(BeagleBone Black).
  • +5V Output supplied into BBB via expansion connectorSolar/Battery OR Output Voltage.
  • Also applicable for Pb Battery.
  • MPP(Maximum Power Point) set to 17.6V.
  • Maximum +5V output supply current is 3A.
  • 3AOptinal 10k NTC thermistor for battery is aplicableCharging current is limited to 2.67A.
  • Operating Temperature Range: −10 degC to +50 degC.
  • degCBattery temperature range is −10 degC to +50 degC with optinal 10k NTC thermister.
  • Charging Battery busy indicator LED.
  • Board style docked on BBB via expansion connector.
  • Board Size ; 54mm ×77mm.
  • Capable of charging mobile phone.
応用 ;
  • For use Beaglebone black outside installation with solar panel and battery.
  • IoT Systems applications.
  • Embedded Linux Systems with BBB.
Please check the Catalog.

PoE/PSE Board for BeagleBone Black(ビーグルボーンブラック用PoE/PSE基板)
*PoE ; Power over Ethernet
*PSE ; Power Sourcing Equipment

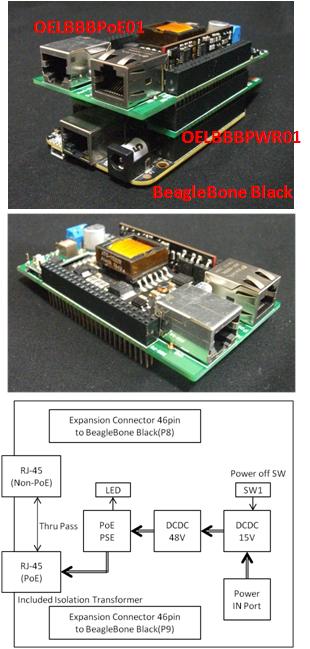

The OELBBBPoE01 is PoE(Power over Ethernet)/PSE (Power Sourcing Equipment) board docked on BBB (BeagleBone Black) with a needed intermediate board. The Battery charger board OELBBBPWR01 is also available for the needed intermediate board. The OELBBBPoE01 provides +48V/15.4W(IEEE802.3af) power sourcing into PoE/PD(Powered Device). The voltage input range is wide from +9V upto +20V, and then DCDC48V converter is mounted in board. The LED1 on board indicates PoE/PD detecting status. The SW1 on board is available for power-off of PoE. Operating temperature range is −15deg.C to +50deg.C. Two ethernet port RJ-45 are mounted on the board.One RJ-45 is for PoE/PD, and another RJ-45 is for non-PoE devices. These two RJ-45 separate PoE power line and ethernet signal line via isolation transformer. When you apply total set with having docked BBB and OELBBBPoE01 and OELBBPWR01, it is very useful and very convenient for user as easy placed IoT/Solar&Li-ion battery/BBB server systems outside installation with PoE devices such as network camera.

Features ;
  • PoE/PSE Board for BBB(BeagleBone Black).
  • Compliant with IEEE802.3af(48V/15.4W).
  • Vin = +9V to +20V.
  • DCDC48V converter on board.
  • Operating Temperature Range: −15 degC to +50 degC.
  • PoE/PD(Powered Device) Detecting indicator LED.
  • Power off SW1 for PoE/PSE 48V.
  • Board style docked on BBB via expansion connector.
  • Board Size ; 54mm × 100mm.
  • RJ-45(for PoE/PD) and RJ-45(for Non-PoE) separate PoE power line and ethernet signal line via isolation transformer.
  • Applicable to be docked to OELBBBPWR01.
Applications ;
  • For use Beaglebone black outside installation with PoE Network Camera and solar panel and battery.
  • IoT Server Systems applications.
  • PoE Network Camera solutions.
  • Embedded Linux Systems with BBB.
Please check the Catalog.

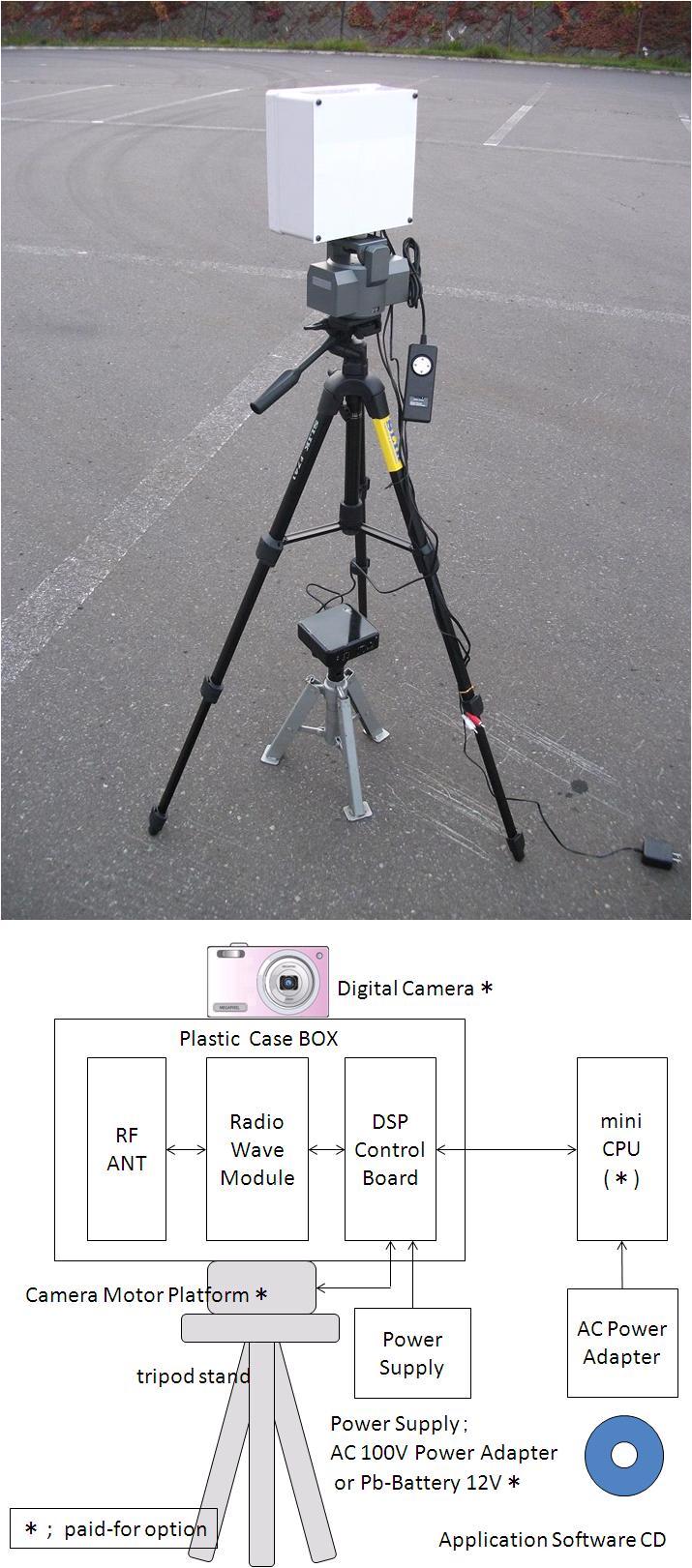

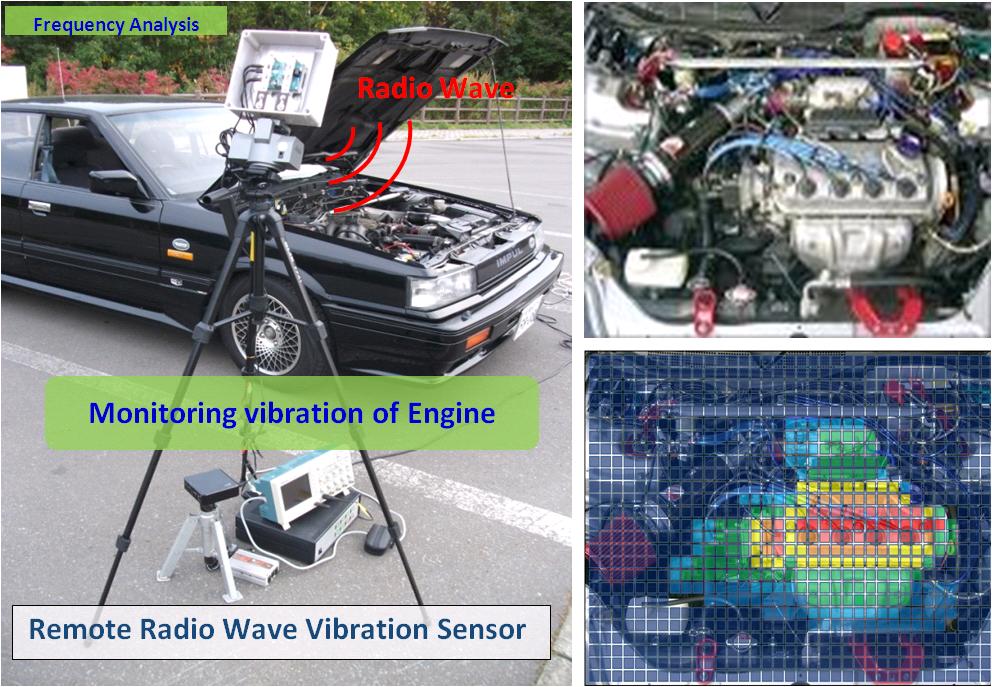

非接触で金属構造物の振動を計測することが出来る商品です。 また、建造物・車両の距離や移動体の速度も計測する事が出来ます。 また、電動雲台が設置されており自動的に2次元の振動分布データーを計測する事も出来ます。

特徴 ;
  • Remote Sensing a vibration of mechanical machines via 24GHz Radio wave.
  • Detecting the location of unusual vibration on machines such as pumps, engines, electrical motors and so on.
  • Frequency analysis with FFT(Fourier Transform) by DSP(Digital Signal Processor).
  • Automatic Area Scanning by camera motor platform.
  • High temperature objects is OK with remote sensing via radio wave.
  • Approved Test Certification as specified low power radio station with no license in Japan.
  • Supplying the methods to measure a distance to object and velocity of moving object.
  • Supplying a mini-Computer as a paid-for option.
  • Supplying a camera motor platform as a paid-for option.
  • Taking a photo of objects by digital camera with color tone graph per vibration strength.
機能 ;
  • Monitoring a time-waveform of vibration with displaying on graph
  • Frequency Analysis of vibration by FFT(Fast Fourier Transform)
  • Automatic Area Scanning by camera motor platform with a color toned graph photo of objects per vibration strength shot by digital camera.
  • Measuring a distance to object and velocity of moving object.
Please check the Catalog.

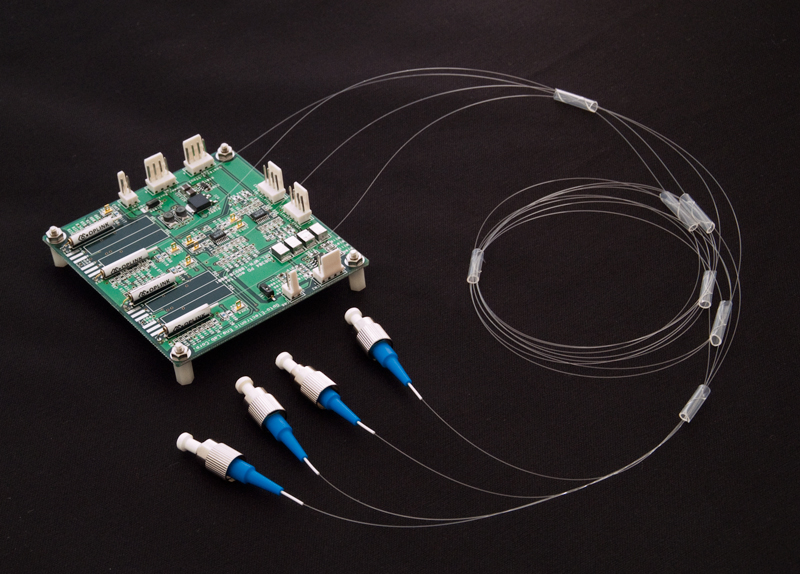

フォトダイオード用ログアンプ ボード ; OELOGAMP8304(販売中止)
フォトダイオードの光電流を対数変換(Log)して、電圧出力する電子回路基板の商品です。 AD8304のICが搭載されております。信号帯域特性はIpd=1nAの時、BW=2kHzです。Ipd=1mA以上の時、BW=10MHzです。 信号電流が大きいほど、高速になります。直流信号も伝達いたします。

特徴 ;
  • 幅広いフォトダイオードの光電流範囲 100pA to 10mA
  • 光ファイバー接続のフォトダイオードの信号モニタとして最適
  • 対数変換の電圧出力機能
  • フォトダイオードを4個実装可能。スルーホール、プリントパッド実装
  • ボードサイズ 80mm×90mm
  • 信号帯域幅 最大10MHz
  • 動作温度範囲 : −20℃から+60℃

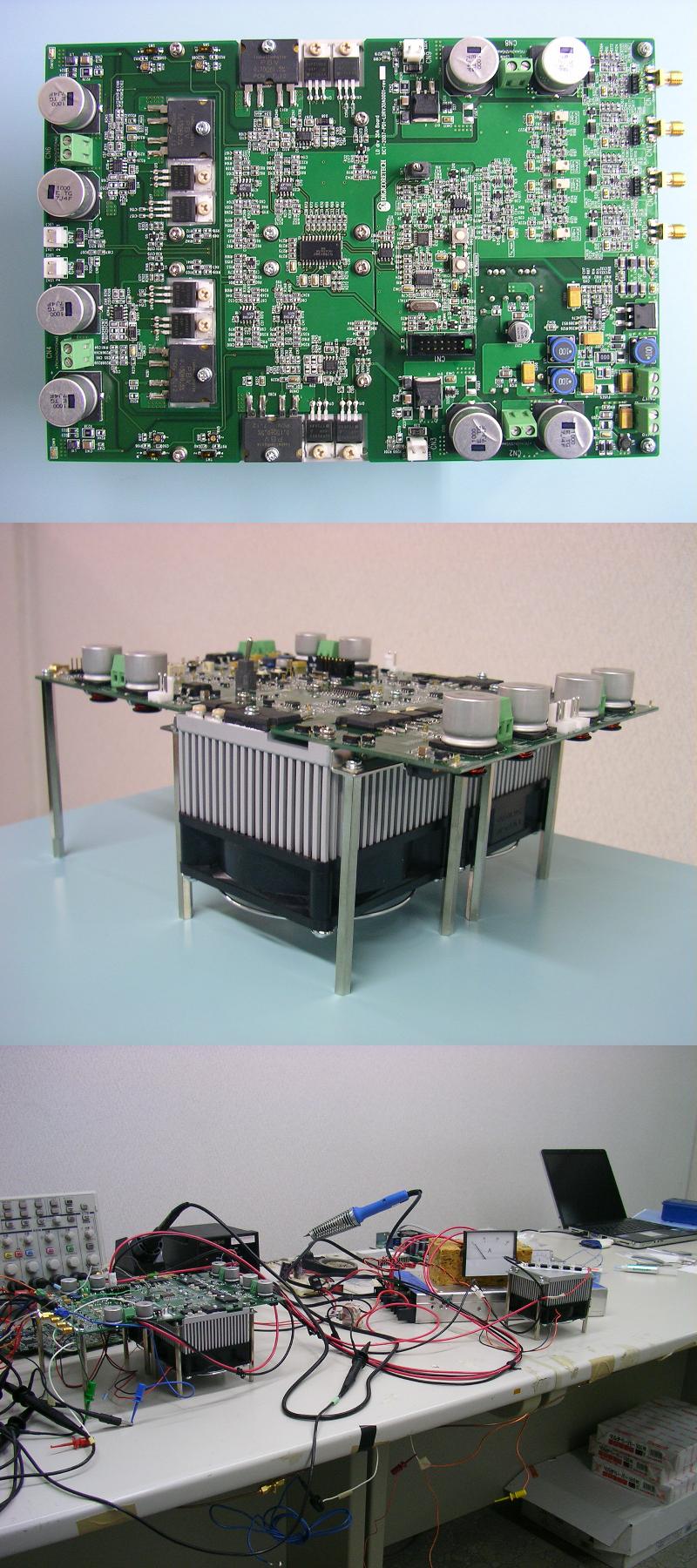

最大30Aの電流が流せる高電流駆動回路・レーザー駆動回路の電子回路基板商品です。7.5Aの電流駆動回路が4基搭載されています。 強制空冷FANとヒートシンクが一体化されています。

特徴 ;
  • 駆動電流 7.5A(max)/driver × 4drivers = トータル最大 30A(max)
  • 強制空冷FAN付きヒートシンクがボードに一体実装。
  • レーザーの実装方法;ターミナルブロック
  • 小型マイコンによるレーザー電流アラーム機能
  • ボードサイズ 165mm×215mm×110mmh
  • 複数のレーザーを直列接続の状態で取り付け、動作させることが出来ます
備考 ;
  • ペルチェ(TEC)駆動回路は搭載されておりません。
  • 駆動電源電圧は最大+12Vです。負荷の等価抵抗値と駆動電源電圧値は負荷電流に制限を与えます。 負荷抵抗値が大きいか、駆動電源電圧が低い場合には、負荷電流が30Aまで到達しない場合もあります。
