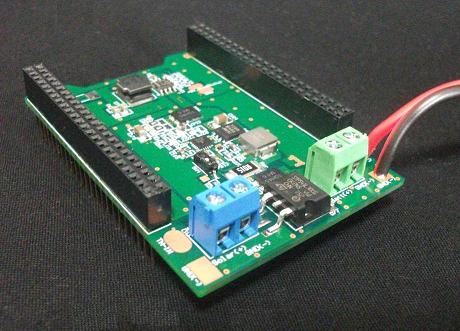

Now on sale! Li-ion Battery Charger Board with Solar Panel for BeagleBone Black ; OELBBBPWR01
We provide the Li-ion battery charger board which supplies +5V power into BeagleBone Black. And more, the OELBBBPWR01 is available for outputting the voltage to the outside via solar panel output or battery output, whichever is larger.

Features ;
  • Li-ion 12V Battery Charger with 20Vmax/MPP17.6V Solar Panel for BBB(BeagleBone Black)
  • +5V Output supplied into BBB via expansion connector
  • Solar Panel/Battery OR Output Voltage
  • Charging current is limited to 2.67A
  • Board Size 54mm~77mm
  • Available board style docked on BBB via expansion connector
  • Contents ; OELBBBPWR01~1pcs
Price and How to pay ;
Please cotact us by e-mail about the price. And please see the following documents.

Catalog and Manuals ;

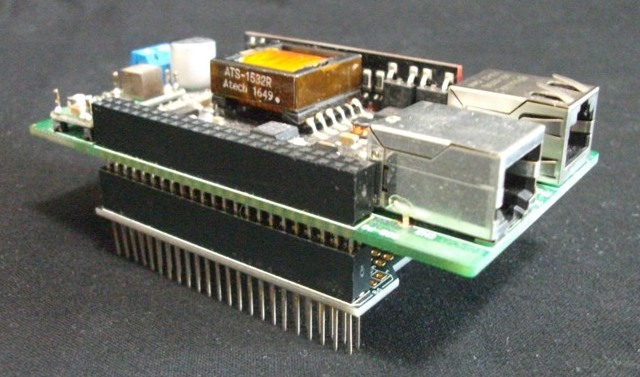

Now on sale! PoE/PSE Board for BeagleBone Black ; OELBBBPoE01
We provide the PoE(Power over Ethernet)/PSE(Power Sourcing Equipment) board which supplies +48V power converted from external +12V voltage sources to the PoE/PD(powered device) through RJ-45(PoE). The ohter side of RJ-45(Non-PoE) outputs ethernet signals which is insulated electrically from +48V power. The OELBBBPoE01 is able to be connected to BeagleBone Black via battery charger board OELBBBPWR01 or intermadiate board OELBBBMidBoard01.

Features ;
  • PoE(Power over Ethernet)/PSE(Power Sourcing Equipment)
  • Compliant with IEEE802.3af(48V/15.4W/Alternative-B)
  • Operating Temperature Range ; -15`+50
  • RJ-45(for PoE)~1pcsARJ-45(for Non-PoE)~1pcsG10/100BASE-TX
  • Board Size 54mm~100mm
  • Available board style docked on BBB via expansion connector with intermadiate board OELBBBMidBoard01
  • Available board style docked on battery charger board OELBBBPWR01 via expansion connector
  • Contents ; OELBBBPoE01~1pcsAOELBBBMidBoard01~1pcs
Price and How to pay ;
Please cotact us by e-mail about the price. And please see the following documents.

Catalog and Manuals ;

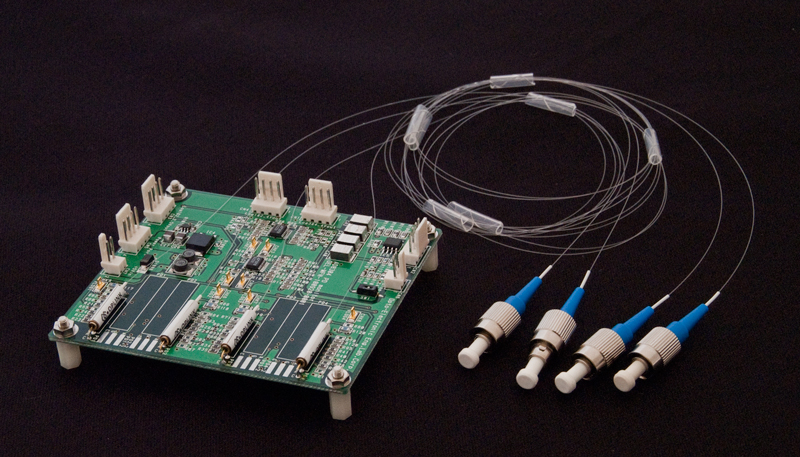

PhotoDiode Log Amplifier Circuits Boards ; OELOGAMP8304(Not for Sale)
We provide the photodiode current amplifier print circuits boards which transfer the current signal to the output voltage with logarithmic conversion.

Features ;
  • Wide Photodiode Current Range 100pA to 10mA
  • Optimized for Fiber Optic Photodiode Monitoring
  • Logarithmic Conversion with Voltage Output
  • 4-Photodiodes Populating Pad/Through Hole on Board
  • Board Size 80mm~90mm
  • Output maximum Bandwidth of 10MHz
Price and How to pay ;
Please cotact us by e-mail about the price. And please see the following documents.

Catalog and Manuals ;



The notation based on the Specified Commercial Transaction Act
Please check the notation based on the Specified Commercial Transaction Act.
